Pivot Shower Enclosure

Elegance
Elegance
Elegance
Elegance
Elegance
Elegance
Elegance
Elegance
Elegance
Elegance

PRODUCT SPECIFICATION

  • 3/8 in. (10 mm) thick clear tempered glass
  • Chrome, Brushed Nickel or Oil Rubbed Bronze hardware finish
  • Frameless glass design
  • Out-of-plumb installation adjustability: Up to 1 in. per side
  • Frameless glass pivot shower enclosure design
  • Elegant solid brass pivot mechanism and anodized aluminum wall profiles
  • Reversible for right or left door opening installation
  • Material: Tempered Glass, Aluminum, Brass
  • Optional backwalls and SlimLine shower base available
  • Tempered glass ANSI certified
  • Plumbing codes vary by state; DreamLine is not responsible for code compliance

  • Note: To minimize leakage, install shower head opposite of door opening aimed at tiled walls, fixed shower panel or floor

    Product Warranty:
  • Limited 5 (five) year manufacturer warranty


  • If purchasing a separate shower base, be advised that a shower enclosure is ordered to fit the finished threshold dimensions, while a shower base is ordered to fit the rough opening dimensions (against the studs), so shower base will always be larger than the coordinating shower enclosure

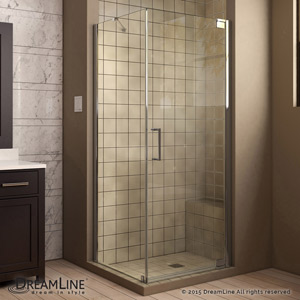

The Elegance shower enclosure combines clean minimal styling with exceptional quality. Opulent 3/8 in. thick tempered glass and a fluid frameless design create a prefect mix of strength and beauty. The corner installation maximizes space and becomes the heart of a bathroom design, while minimal hardware generates an open and airy appeal.

Configuration w/ Support Arm Model Number Configuration
with Shelves
Model Number Dimensions
D X W x H
SHEN-4130300 SHEN-4130301 30" x 30" x 72"
SHEN-4134300 SHEN-4134301 34" x 30" x 72"
SHEN-4130320 SHEN-4130321 30" x 32" x 72"
SHEN-4134320 SHEN-4134321 34" x 32" x 72"
SHEN-4130340 SHEN-4130341 30" x 34" x 72"
SHEN-4134340 SHEN-4134341 34" x 34" x 72"
Shower Enclosure
Model Number
Dimensions
D X W x H
Corner Drain
SHEN-4130301 32" x 32" x 2-3/4" DLT-1032320
SHEN-4134340 36" x 36" x 2-3/4" DLT-1036360
