PRODUCT SPECIFICATION

  • 3/8 in. (10 mm) thick clear tempered glass
  • Chrome, Brushed Nickel or Oil Rubbed Bronze hardware finish
  • Frameless glass design
  • Out-of-plumb installation adjustability: 1 in. for configurations with stationary panel
  • Precise width measurement of finished opening required for configurations without stationary panel
  • Self-closing solid brass wall mount hinges (5 degree offset)
  • Reversible for right or left door opening installation
  • Material: Tempered Glass, Brass
  • Tempered glass ANSI certified

  • Note: To minimize leakage, install shower head opposite of door opening aimed at tiled walls, fixed shower panel or floor

    Product Warranty:
  • Limited 5 (five) year manufacturer warranty
  • Warranty for any hardware in Oil Rubbed Bronze finish is limited to 1 (one) year

The Unidoor single swing door combines premium 3/8 in. thick tempered glass with a sleek frameless design for the look of a custom glass door at an amazing value. Top quality solid brass self-closing hinges install glass-to-wall to create the completely frameless design. Choose the clean lines of the Unidoor to give your bathroom renovation a polished upscale appeal.

Click on door model number or for individual technical drawing

Unidoor shower door 23" - 60"

Configuration Model Number Configuration Model Number Opening Range Door Width Panel Width
--- ---
No stationary panel
No shelves
No support arm
SHDR-20237210F 23" 23" -
SHDR-20247210F 24" 24" -
SHDR-20257210F 25" 25" -
SHDR-20267210F 26" 26" -
SHDR-20277210F 27" 27" -
SHDR-20287210F 28" 28" -
SHDR-20297210F 29" 29" -
SHDR-20307210F 30" 30" -
--- ---
 6" stationary panel
No shelves
No support arm
SHDR-20297210 29-30" 23" 6"
SHDR-20307210 30-31" 24" 6"
SHDR-20317210 31-32" 25" 6"
SHDR-20327210 32-33" 26" 6"
SHDR-20337210 33-34" 27" 6"
SHDR-20347210 34-35" 28" 6"
SHDR-20357210 35-36" 29" 6"
SHDR-20367210 36-37" 30" 6"

12" stationary panel w/ Support Arm
SHDR-20357210C
12" stationary panel  w/ Shelves
SHDR-20357210CS 35-36" 23" 12"
SHDR-20367210C SHDR-20367210CS 36-37" 24" 12"
SHDR-20377210 SHDR-20377210S 37-38" 25" 12"
SHDR-20387210 SHDR-20387210S 38-39" 26" 12"
SHDR-20397210 SHDR-20397210S 39-40" 27" 12"
SHDR-20407210 SHDR-20407210S 40-41" 28" 12"
SHDR-20417210 SHDR-20417210S 41-42" 29" 12"
SHDR-20427210 SHDR-20427210S 42-43" 30" 12"

18" stationary panel w/ Support Arm
SHDR-20417210C

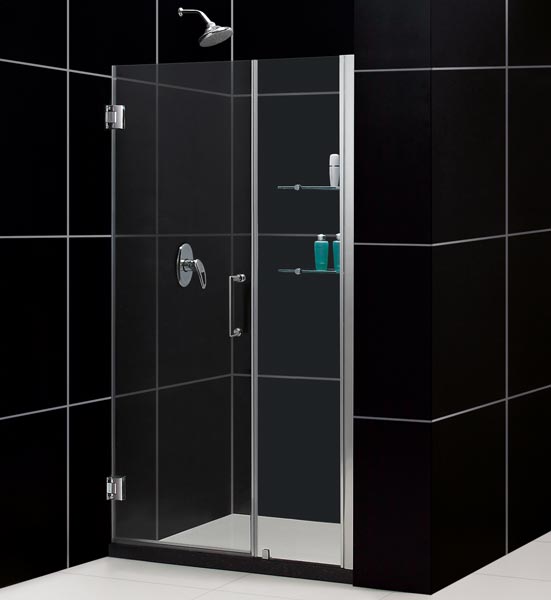

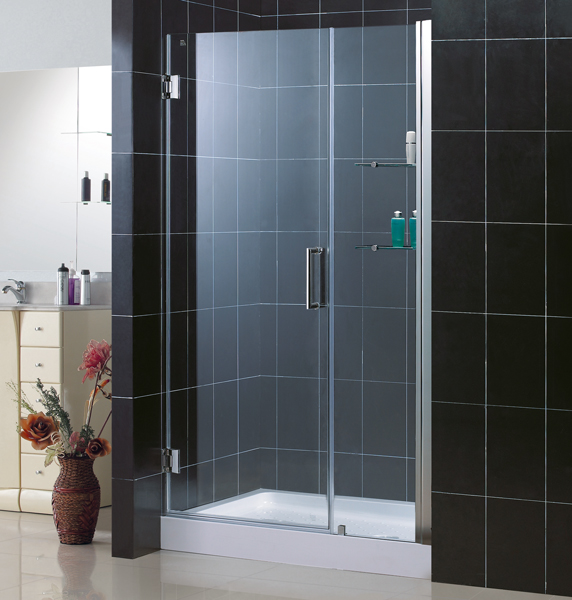

18" stationary panel w/ Shelves
SHDR-20417210CS 41"-42" 23" 18"
SHDR-20427210C SHDR-20427210CS 42"-43" 24" 18"
SHDR-20437210 SHDR-20437210S 43"-44" 25" 18"
SHDR-20447210 SHDR-20447210S 44"-45" 26" 18"
SHDR-20457210 SHDR-20457210S 45"-46" 27" 18"
SHDR-20467210 SHDR-20467210S 46"-47" 28" 18"
SHDR-20477210 SHDR-20477210S 47"-48" 29" 18"
SHDR-20487210 SHDR-20487210S 48"-49" 30" 18"

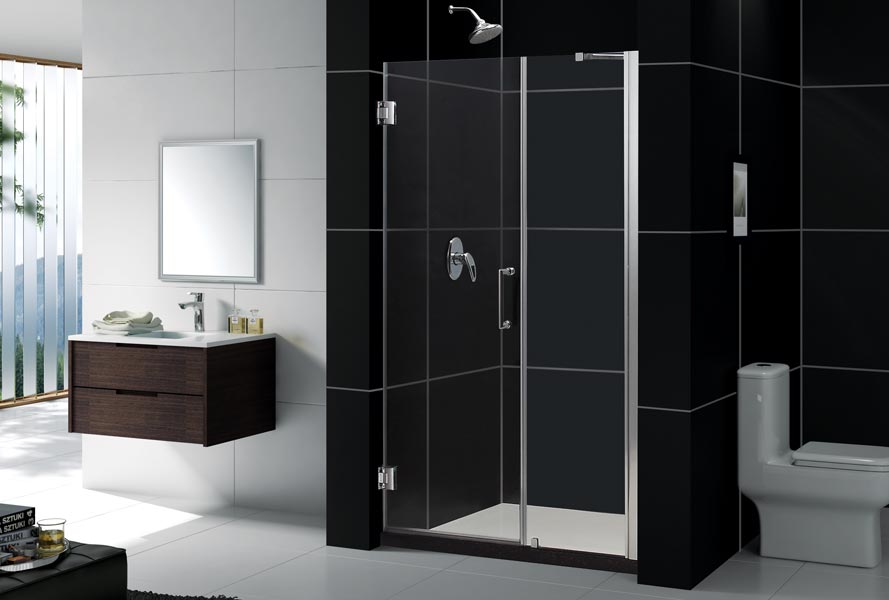

 24"stationary panel w/ Support Arm
SHDR-20477210C
 24" stationary panel w/ Shelves
SHDR-20477210CS 47"-48" 23" 24"
SHDR-20487210C SHDR-20487210CS 48"-49" 24" 24"
SHDR-20497210 SHDR-20497210S 49"-50" 25" 24"
SHDR-20507210 SHDR-20507210S 50"-51" 26" 24"
SHDR-20517210 SHDR-20517210S 51"-52" 27" 24"
SHDR-20527210 SHDR-20527210S 52"-53" 28" 24"
SHDR-20537210 SHDR-20537210S 53"-54" 29" 24"
SHDR-20547210 SHDR-20547210S 54"-55" 30" 24"

30" stationary panel  w/ Support Arm
SHDR-20537210C
30" stationary panel w/Shelves
SHDR-20537210CS 53"-54" 23" 30"
SHDR-20547210C SHDR-20547210CS 54"-55" 24" 30"
SHDR-20557210 SHDR-20557210S 55"-56" 25" 30"
SHDR-20567210 SHDR-20567210S 56"-57" 26" 30"
SHDR-20577210 SHDR-20577210S 57"-58" 27" 30"
SHDR-20587210 SHDR-20587210S 58"-59" 28" 30"
SHDR-20597210 SHDR-20597210S 59"-60" 29" 30"
SHDR-20607210 SHDR-20607210S 60"-61" 30" 30"


Matching Base Selection Guide

Model Number Opening Range Door Width Panel Width Suggested Base
SHDR-20307210 30"-31" 24" 6" DLT-1132320
SHDR-20347210 34"-35" 28" 6" DLT-1136360
SHDR-20467210 / SHDR-20467210S 46"-47" 28" 18" DLT-1136480
SHDR-20587210 / SHDR-20587210S 58"-59" 28" 30" Any Single Threshold Shower Base 60" Width
