Aqua Lux Shower Door & Base Kit

Finish Opions

Take the guesswork out by choosing a Shower Door & Base Kit by DreamLine™ for your bathroom renovation. These kits are designed to insure that your shower doors are a perfect fit with the high quality slip-resistant shower base (or shower pan) included. The AQUA LUX™ Shower Door & Base Kit brings high style to your bathroom transformation with a unique curved shape and completely frameless silhouette. With a self-closing glass shower door and easy to reach towel bar, the AQUA LUX™ shower doors are a pleasure to use.

Shower DOOR Specifications:

Tempered 5/16" (8mm) clear glass
Self-closing solid brass hinges
Wall mounted brackets and wall-attached bar for stationary glass
Glass door is reversible for left-wall or right-wall installation
All hardware available in chrome or brushed nickel finish

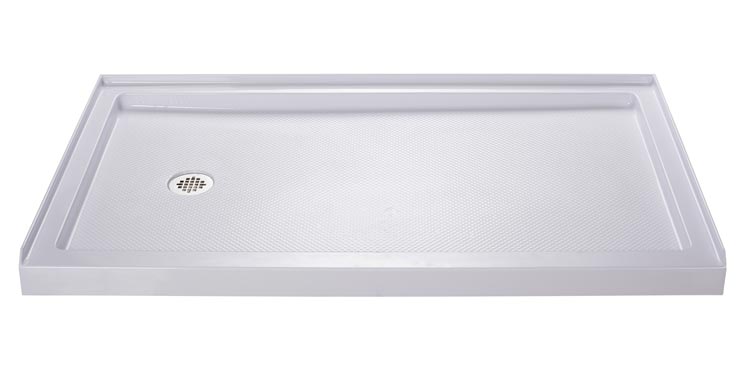

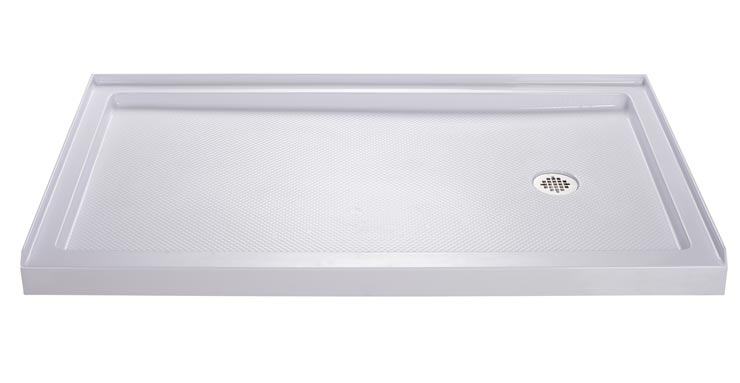

Shower Base Specifications:

Single threshold shower base
SlimLine. cUPC certified
High quality scratch and stain resistant acrylic
Slip-resistant textured floor for safe bathing
Integrated tile flanges for easy installation and waterproofing
Fiberglass reinforcement for durability
Drain not included
Optional Acrylic/ABS back walls (QWALL-3,QWALL-5 )

Kit Model Number	Kit Size, in. D x W x H*	Items Included			Glass Type	Finish
Kit Model Number	Kit Size, in. D x W x H*	Base	Base Configuration	Door	Glass Type	Finish
DL-6514C	36 x 48 x 74-3/4	DLT-1136480	Center Drain	SHDR-3345728	Clear	Chrome (-01), Brushed Nickel (-04)
DL-6510C	30 x 60 x 74-3/4	DLT-1130600	Center Drain	SHDR-3345728	Clear
DL-6510L		DLT-1130601	Left Hand drain
DL-6510R		DLT-1130602	Right Hand drain
DL-6511C	32 x 60 x 74-3/4	DLT-1132600	Center Drain	SHDR-3345728	Clear
DL-6511L		DLT-1132601	Left Hand drain
DL-6511R		DLT-1132602	Right Hand drain
DL-6512C	34 x 60 x 74-3/4	DLT-1134600	Center Drain	SHDR-3345728	Clear
DL-6512L		DLT-1134601	Left Hand drain
DL-6512R		DLT-1134602	Right Hand drain
DL-6513C	36 x 60 x 74-3/4	DLT-1136600	Center Drain	SHDR-3345728	Clear
DL-6513L		DLT-1136601	Left Hand drain
DL-6513R		DLT-1136602	Right Hand drain
